LILLIPUT UQ31 31.5-Inch 4K Production Monitor with HDR, 3840x2160 Reso

LILLIPUT UQ31 31.5-Inch 4K Production Monitor with HDR, 3840x2160 Resolution, 1000 Nits Brightness, 12G-SDI and HDMI 2.1 Inputs, Waveform Tools, Battery Plate (UQ31-ABBP with Gold Mount Plate)

$1,358.17 $3,699.00

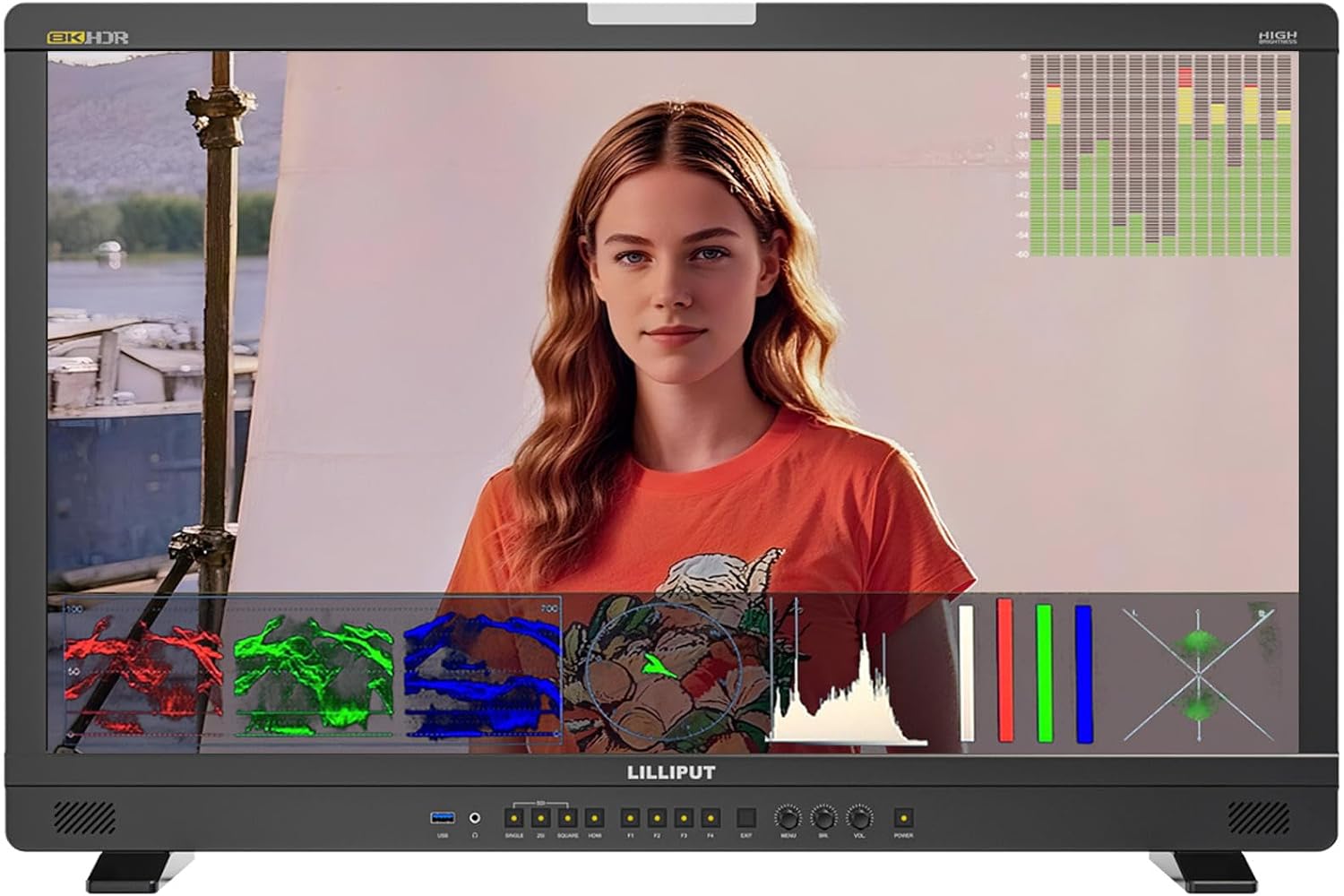

LILLIPUT UQ31 31.5' 4K High Bright Production Monitor, 3840×2160, 1000 nits, 12G-SDI×4 & HDMI 2.1 8K Input, HDR ST2084/HLG, 3D-LUT, Waveform/Vector/Histogram, Battery Plate Included 31.5' 4K UHD High-Brightness Display (1000 nits) The LILLIPUT UQ31 features a 31.5-inch 3840×2160, 10-bit panel with 1000 cd/m² brightness, 1000:1 contrast, and 178°/178° viewing angles, delivering a bright, detailed, and color-accurate image ideal for outdoor, studio, and OB van environments. 8K-Ready 12G-SDI & HDMI 2.1 Workflow Equipped with 4× 12G-SDI inputs/outputs, HDMI 2.1 input & loop output, and 12G SFP+, the UQ31 supports Single-, Dual-, and Quad-Link 12G-SDI up to 8K 60 Hz, plus HDMI 2.1 up to 8K 60 Hz for next-generation broadcast and cinema workflows. HDR, 3D-LUT & Wide Color Gamut Supports HDR (ST 2084 300/1000/10000 & HLG), Gamma 1.8–2.8, and 3D-LUT loading via USB. Color gamut options include SMPTE-C, Rec.709, EBU, DCI-P3, and BT.2020, allowing precise matching to professional workflows and color pipelines. Professional Monitoring Tools for Broadcast & Cinema Built-in Waveform (Multi/Y/YCbCr/RGB), Vector, Histogram (Y/RGB/Color), False Color (Default/Spectrum/ARRI/RED), Peaking, Exposure Zebra, Zoom, Check Field, Time Code (LTC/VITC), Audio Vector, and 16-channel Level Meter provide comprehensive analysis tools for exposure, focus, and color. Quad-Split Multiview & Flexible Remote Control Supports Quad Split Multiview with configurable frame line width and color per window, plus Tally and UMD text display. Control via GPI, RS422 (TSL V3.1), and LAN using Remote Web software for centralized studio or truck operation. Designed for Field & Studio Use Rugged housing with VESA 75×75/100×100 mm mounting, rear metal grip, and optional suitcase & sunshade (for 23.8' version). High-brightness panel is optimized for bright environments, while the integrated fan supports Auto/On/Off modes for reliable long-term operation. Includes V-Mount/Anton Bauer Battery Plate Set & More Comes with a 19V/6A DC power adapter, base brackets, 8GB USB flash drive (with user guide & software), and a set including V-Mount/Anton Bauer battery plate + VESA mount plate + D-tap to XLR power cable, so you're ready to integrate into studio or mobile rigs right out of the box. The LILLIPUT UQ31 is a 31.5-inch 4K high-bright production monitor designed for professional broadcast, live events, film sets, and OB vans that demand both high brightness and high accuracy. With a 3840×2160 10-bit panel and 1000 nits brightness, the UQ31 maintains excellent visibility even in bright environments, while a 1000:1 contrast ratio and wide 178°/178° viewing angle ensure consistent image quality across the control room or set. The monitor's advanced connectivity includes 4× 12G-SDI inputs/outputs, HDMI 2.1 input and loop output, GPI, RS422, LAN, USB, and 12G SFP+, supporting 8K 60 Hz via 12G-SDI or HDMI 2.1, and 4K 60 Hz via SFP. This makes the UQ31 a flexible hub for modern IP, SDI, and HDMI workflows. For color-critical work, the UQ31 offers HDR display modes (ST 2084 / HLG), Gamma selection (1.8–2.8), and 3D-LUT capability with USB loading. Users can choose between multiple color spaces—Native, SMPTE-C, Rec.709, EBU, DCI-P3, BT.2020—and compare Gamma/HDR, Color Space, or Camera Log against the original image side by side using the Comparison function. The monitor includes a full suite of professional monitoring tools: waveform (Multi/Y/YCbCr/RGB), vector, histogram (Y/RGB/Color), peaking, false color (Default/Spectrum/ARRI/RED), exposure, check field, zoom, closed caption, and Time Code (LTC/VITC). On the audio side, it supports up to 16 channels over SDI, with level meters and audio vector for phase monitoring. Multiview functions allow Quad-Split monitoring with configurable sources per window (SDI1-4, HDMI, SFP), frame line width and color, and tally indication, ideal for multi-camera productions. Control is just as flexible: the UQ31 can be operated via front panel knobs and F1–F4 shortcut keys, or remotely via GPI, RS422 (TSL V3.1), or LAN using the 'Remote Web' application, making it a strong choice for complex studio setups. Physically, the monitor offers VESA 75/100 mm mounting, a metal grip, and optional rugged suitcase with sunshade (for 23.8' version) for mobile jobs. Power is supplied via DC 15–32 V through a 4-pin XLR connector, and the included V-mount/Anton Bauer plate set with D-tap to XLR cable allows battery-powered operation in the field. Technical Specifications (for 'Product Information' Section) Model: LILLIPUT UQ31 – 31.5' High Bright Production Monitor Panel Size: 31.5' 10-bit Resolution: 3840 × 2160 (4K UHD) Aspect Ratio: 16:9 Brightness: 1000 cd/m² Contrast Ratio: 1000:1 Viewing Angle: 178° (H) / 178° (V) Inputs 12G-SDI × 4 HDMI 2.1 GPI RS422 LAN USB 12G SFP+ UQ31 High Bright Production Mon… Outputs 12G-SDI × 4 HDMI 2.1 RS422 Earphone jack UQ31 High Bright Production Mon… Supported Formats 12G-SDI: up to 8K 60 Hz HDMI 2.1: up to 8K 60 Hz 12G SFP+: up to 4K 60 Hz UQ31 High Bright Production Mon… Remote Control RS422 In/Out GPI LAN UQ31 High Bright Production Mon… Power Power Input: DC 15–32 V (31.5') Power Consumption: ≤ 94 W (24 V) Environment Operating Temperature: 0 – 50 °C Storage Temperature: −20 – 60 °C Physical Dimensions (L×W×D): 747 × 475.1 × 55 mm (monitor only) Weight: 12.5 kg (monitor) 📦 Included Accessories From the Accessories section UQ31 High Bright Production Mon… Standard Accessories: 19 V / 6 A DC Adapter × 1 Base Brackets × 1 pair 8 GB USB Flash Drive (User guide and software included) × 1 V-Mount / Anton Bauer Battery Plate + VESA Mount Plate + D-tap to XLR Connector × 1 set (chose the model nubmer at listing title

Additional details

Additional Features : Portable
Color : black
Compatible Devices : Camera, Computer, Professional Video Equipment, Video Game Console
Mounting Type : Vesa
Number of Height Positions : 4
Shape : Rectangular
Specific Uses For Product : Production Monitoring, Professional Broadcasting, Video Production
Warranty Type : Limited Manufacturer Warranty

Connectivity
